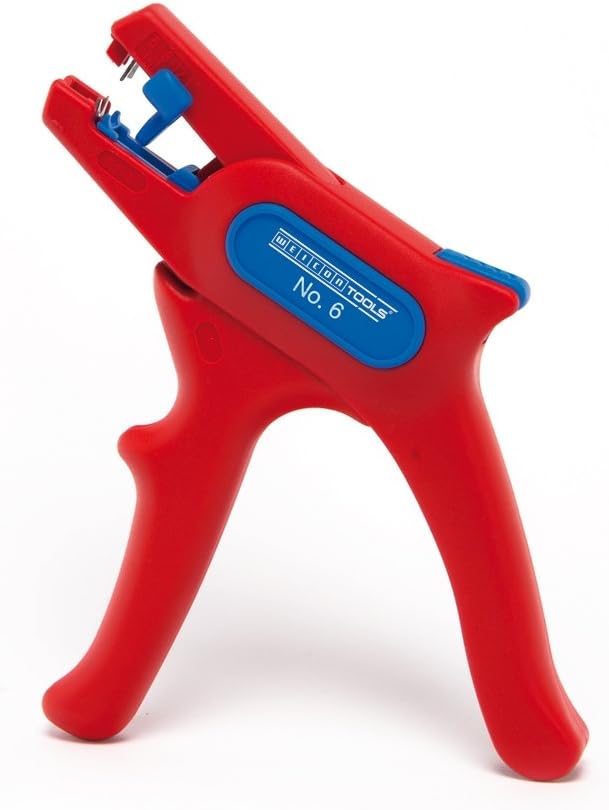

Automatic Wire Stripper for round cables 24-10 AWG (0.2-6 mm²), red, Pack of 2 M998
AREA OF APPLICATION - Automatic wire stripper for all common flexible and solid conductors from 4-10 AWG (0.2 - 6 mm²)
PRECISION - Precise working due to adjustable and removable length stop 5 - 12 mm as well as the scanning system, which automatically adjusts to the respective conductor cross-section.
ADDITIONAL FUNCTION - WEICON Wire Stripper No. 6 is approved for working on cables with a voltage up to 1000 Volt (routine test according to VDE regulation IEC 60900:2004)
QUALITY - 100% Made in Germany - Made of robust and ergonomically shaped glass fibre reinforced polyamide / The durable blades are made of high-quality knife steel from Solingen.
SAFETY - The stripping tool is VDE tested in terms of occupational safety
WEICON No. 6 - Wire Stripper AREA OF APPLICATION: The stripper has an adjustable length stop of 5 - 12 mm, enabling stripping of all flexible and solid conductors from 0.2 - 6.0 mm² (24 - 10 AWG). If required, the cross-cut fence can also be removed. PRECISION: The pliers are equipped with a scanning system that automatically adjusts to the respective conductor cross-section, thus enabling fast and precise stripping and preventing damage to the inner conductors. ADDITIONAL FUNCTION: WEICON Wire Stripper No. 6 is approved for working on cables with a voltage of up to 1000 volts (routine test according to VDE regulation IEC 60900:2004). ERGONOMICS: The stripping machine is particularly characterized by its ease of operation and smooth mechanism. The low weight of No.6 ensures fatigue-free working. QUALITY: The stripping tool is completely manufactured in Germany and made of robust and glass fibre reinforced polyamide. The long-lasting blades are made of high-quality knife steel from Solingen. SAFETY: This high-quality stripping pliers is TÜV-tested, bears the GS seal for tested safety and was developed with safety at work and user-friendliness in mind. Technical Specifications Cable type: fine-stranded and solid conductors with PVC insulation Application range: 0.2 - 6.0 mm². Inner knife: changeable Added value: VDE-tested up to 1000 volts Approval/Certificate: VDE tested Material: glass fibre reinforced polyamide Length: 170 mm Weight: 105 g
| No. 5 | No. 6 | No. 7 Magic | No. 7-F | No. 7 Solar | |
|---|---|---|---|---|---|
| Working range | 0.2 - 6.0 mm² | 0.2 - 6.0 mm² | 0.5 - 16.0 mm² | 0.75 - 4.0 mm² | 1.5 - 6.0 mm² |
| Side cutter | up to 2.0 mm Ø | - | up to 3.0 mm Ø | up to 3.0 mm Ø | up to 3.0 mm Ø |
| Length stop | ✓ | ✓ | optical length scale | optical length scale | optical length scale |
| Additional function | - | permitted up to 1,000 volts | 2 in 1: stripping and skinning | 2 in 1: stripping and skinning of flat cables | 2 in 1: stripping and skinning of solar cables |
| Locking mechanism | ✓ | ✓ | - | - | - |
| Size | 165 mm | 165 mm | 185 mm | 185 mm | 185 mm |
| Wight | 107 g | 105 g | 217 g | 220 g | 218 g |
| Replaceable blades | ✓ | ✓ | ✓ | ✓ | ✓ |
